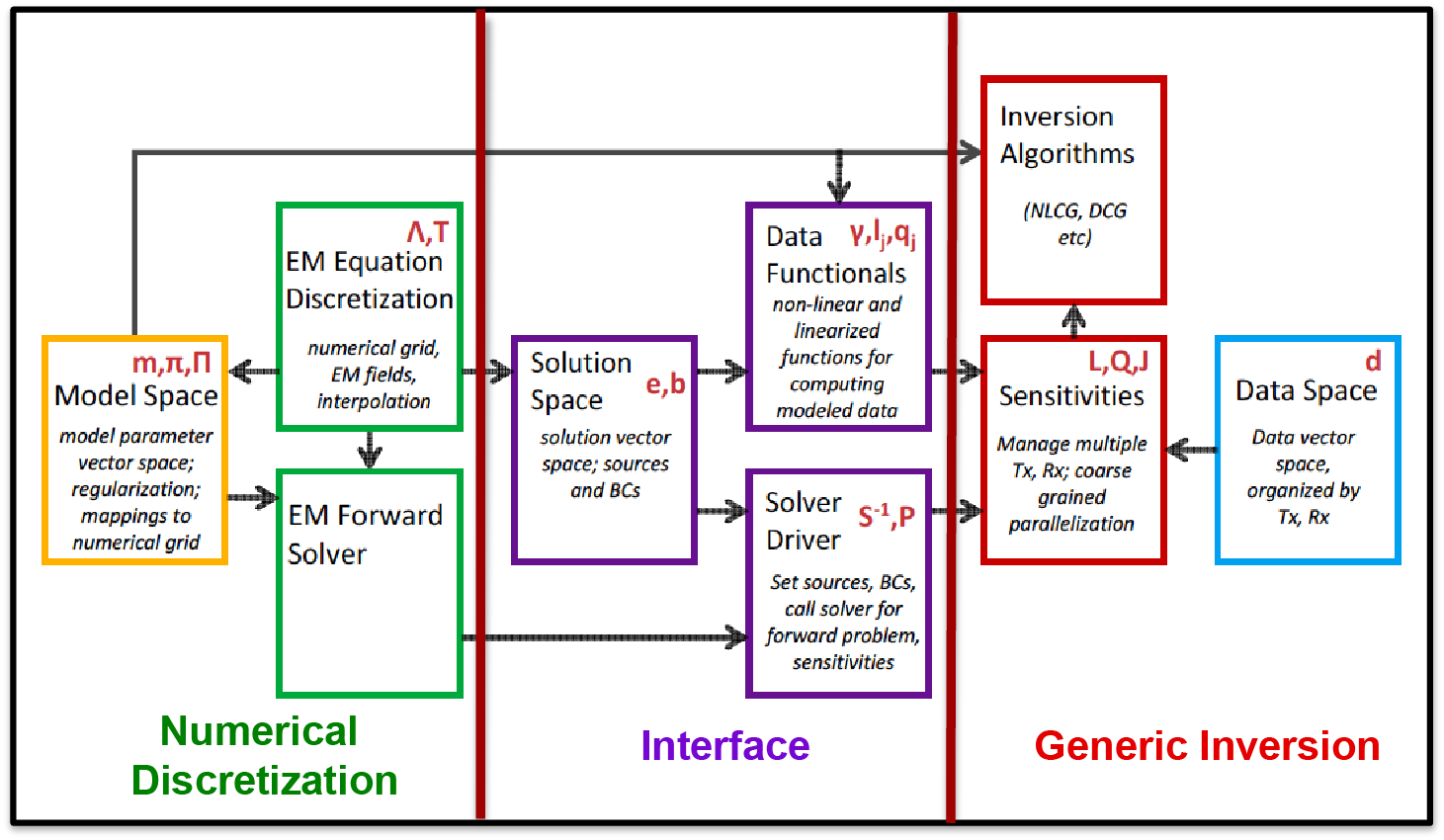

ModEM is a modular system of parallel computer codes for inversion of electromagnetic (EM) geophysical data, developed over the past decade at Oregon State University. The code has been structured as a flexible system, adaptable to a range of EM geophysical data types, and a range of inverse problem solution strategies, and regularization models. The organization of the ModEM code is summarized schematically in the figure. General theory is described in Egbert and Kelbert (2012) and more specific implementation details are given in Kelbert et al. (2014). ModEM is parallelized using standard MPI libraries, as described in Meqbel (2009).

ModEM has so far been applied most extensively to 3D magnetotelluric (MT) data, using a non-linear conjugate gradient (NLCG) scheme for parameter search. A stable version of this code, tailored to 3D MT inversion has been publicly released to the academic community. There are now over 120 registered academic users worldwide, and already at least 20 peer-reviewed publications, and a significantly larger number of conference presentations, describe use of ModEM in basic research applications. A version of this by now well-tested 3D MT code can be licensed for commercial use, with full support and training. We can also provide custom inversion and interpretation services.

Some initial development and application of ModEM for frequency domain controlled source EM (CSEM) data, and for joint inversion of multiple-method EM datasets have recently been completed. We can work with potential customers to implement these extensions, or similar specialized inversion capabilities (e.g., specialized data types), if desired. Ongoing developments which we expect to complete soon include additional options for regularization, and implementation of alternative optimization strategies.

The code is parallelized with MPI, and requires a modest-sized PC-cluster (approximately 30-50 cores, typically running the linux operating system) for effective use. The only external software components required are standard MPI libraries. ModEM can be used on smaller computers (e.g. a multi-core desktop) but will be significantly slower. Further details on computing requirements can be provided by.

Alternative licensing arrangements (e.g., royalty based, reduced cost for limited duration use) may be arranged in some circumstances. Reduced licensing costs may be available in for commercially funded research, by not-for-profit institution, e.g., governmental agencies or universities, engaged in commercially funded research that benefits the enterprise funding the work. Contact us for further details, and quotes for licensing fees.

All commercial licenses include training and support for the first year. Details (e.g., total hours of support and consulting provided) may depend on specific license arrangements. In general support includes:

• Assistance with installation and initial testing of software on client computer.
• Initial training, by phone, email, or other online media in use of the code. In person training sessions can be arranged for additional fees.
• Bug fixes and updates to 3D-MT code for one year. Verified bugs will be fixed within 2 weeks of report by client.
• Support for one year, including consulting and advice on program usage by phone, email or other online media: allowing multiple contacts for both quick and more involved questions (e.g., debugging input files).
• User Interface for model and data setup, and for display of inversion results, are included with the license, with training and support for these tools included as part of the basic training and support package described above.

Support beyond the first year, including any updates and improvements to the code, will be available, typically for 20% of initial license price. Continuing support includes installation and training on use of any upgrades, including consulting on new aspects of code use by an expert from ModEM Geophysics. Customer may resume support (and receive updated code versions) after a lapse in coverage, by remitting support payments for all years missed, or by purchase of a new license.
